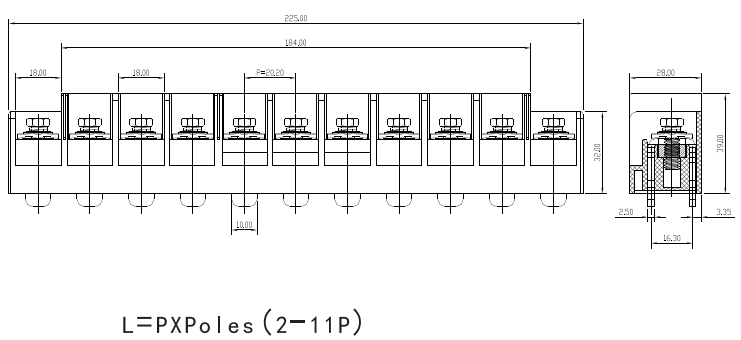

端子間距(Center Spase) |
20.2mm |
|
座線範圍(Wire Range) |
18-3AWG |
|
螺釘扭距(Screw Torque) |
20 Ibf. in |
|
額定電流(Rated Current) |
600V, 100A |
|
耐電壓值(Withstand i ng Voltage) |
AC3000V |
|
絕緣材料(Insulation Body) |
PA66,UL94,V-0 |
|
螺釘材質(Screw Mater i a I) |
M6, STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
