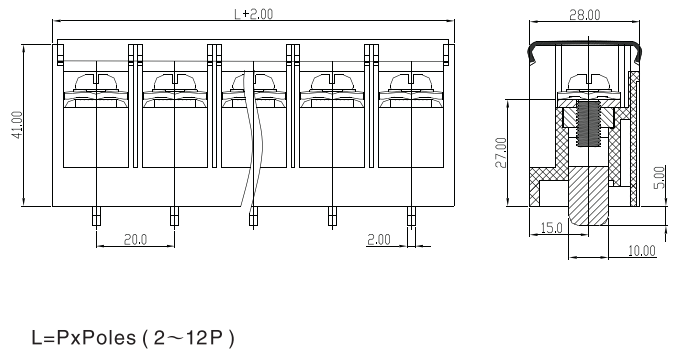

端子間距(Center Spase) |
20.0mm |
|
壓線範圍(Wire Range) |
26-4AWG |
|
螺釘扭距(Screw Torque) |
20 Ibf. in |
|
額定電流(Rated Current) |
600V,85A |
|
耐電壓值(Withstanding Voltage) |
AC3000V |
|
絕緣材料(Insulation Body) |
PA66,UL94,V-0 |
|
蝦釘材質(Screw Material) |
M6, STEEL |
|
端子材質(Terminal Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |

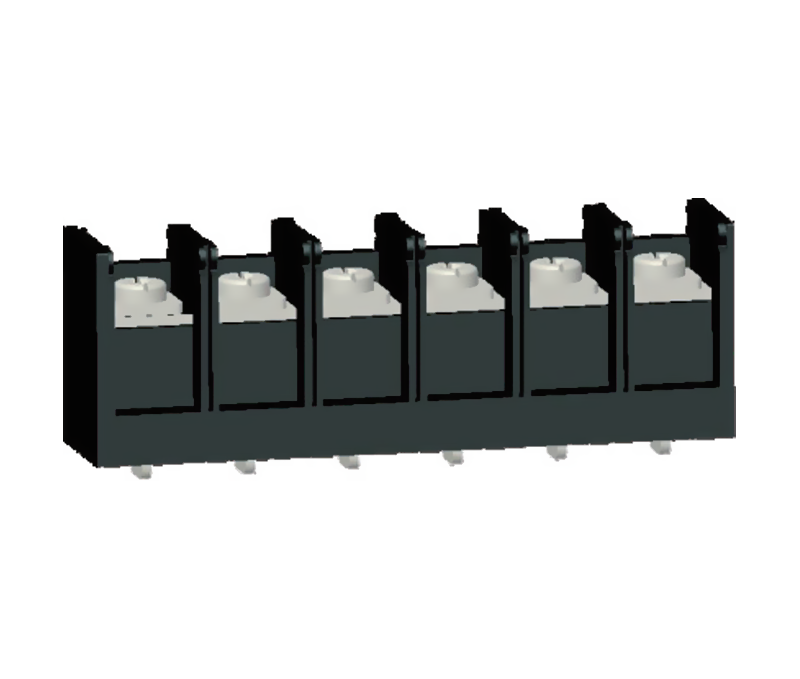

- 上一頁: DA20-XX-23.5-02
- 下一頁: DA20-XX-20.0-04
