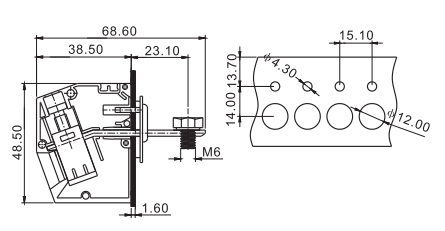

TECHNICAL DATA |
|
|
端子間距(Center Space) |
15.1 mm |
|
壓綫範圍(Wire Range) |
24-2AWG |
|
螺釘扭距(Screw Torque) |
4-4.5 N ? M |
|
額定電流(Rated Current) |
600V,115A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PA66.UL94.V-0 |
|
螺釘材料(Screw Material) |
M5.STEEL |
|
夾綫材質(Clip Cage Mater) |
BRASS |
|
操作溫度Cfemperature) |
■40X3 ?105X3 |
