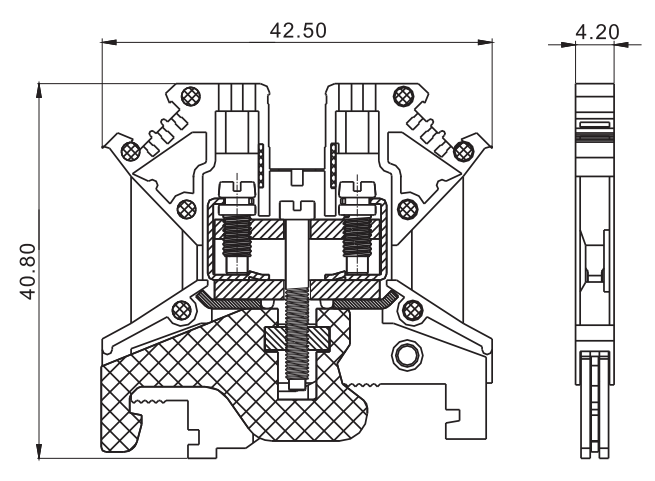

外觀尺寸(Profile Dimensions)
|
厚度(Thickness) |
4.20mm |
|
寬度(Width) |
42.5mm |
|
高度(Height) |
42.0( RS 7.5) |
|
49.5( RS 15) |
|
|
47.0( RS 32) |
TECHNICAL DATA
|
額定參數(Rated Current) |
—— |
|
壓線范圍(Wire Range) |
30-14AWG |
|
絕緣材料(Insulation Body) |
PA66(UL94V-O) |
|
材料組別（Material Group) |
I CLASS |
|
污染等級(Pollution Degree) |
3 |
|
螺釘材料(Screw Material) |
M2, STEEL |
|
螺釘扭矩(Screw Torque) |
0.2-0.3N? m |
|
沖擊電壓(Surge Vbltage) |
6000V |
|
剝線長度(Stripping Length) |
7mm |
相關附件(Mounting Annex)
|
導軌(Mounting Rail) |
RS 7.5(Steel) |
|
RS 15(Steel) |
|
|
RS 32 (Steel) |
|
|
橋接件（Brige Annex) |
|
|
隔 片(Separate Plate) |
|
|
端 板(End Covei) |
|
|
隔 板(Partition Plate) |
|
|
標 條(Marking Tags) |
