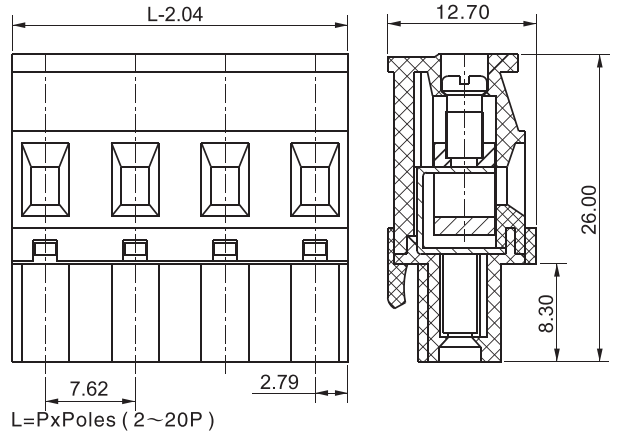

端子間距(Center Spase) |
7.62mm |
|
壓線範圍(Wire Range) |
30-12AWG |
|
螺釘扭距(Screw Torque) |
5 Ibf. in |
|
額定電流(Rated Current) |
300V, 15A |
|
耐電壓值(Withstanding Voltage) |
AC2500V |
|
絕緣材料(Insulation Body) |
Pa66, UL94, V-0 |
|
螺釘材質(Screw Material) |
M3,STEEL |
|
端子材質(Terminal Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
