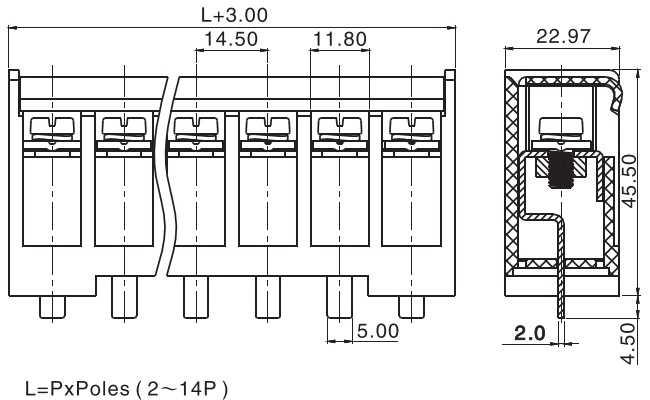

端子間距(Center Spase) |
14. 50mm |
|
座線範圍(Wire Range) |
22-8AWG |
|
螺釘扭距(Screw Torque) |
20 Ibf. in |
|
額定電流(Rated Current) |
600V,57A |
|
耐電壓值(Withstandi ng Voltage) |
AC3000V |
|
絕緣材料(Insulation Body) |
PBT,UL94,V-0 |
|
螺釘材質(Screw Mater i a I) |
M5,STEEL |
|
端子材質(Terminal Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
