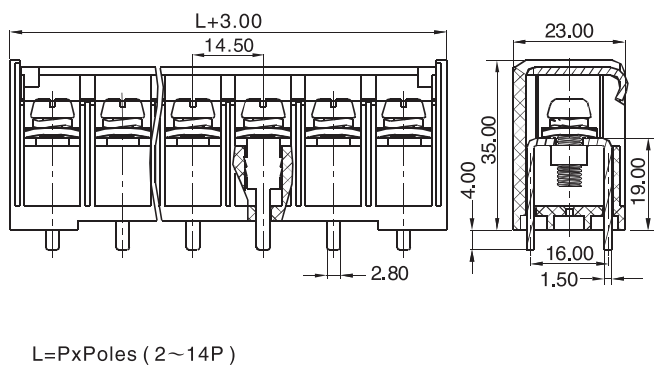

端子間距(Center Spase) |
14. 50mm |
|
壓線範圍(Wire Range) |
22-8AWG |
|
蠟釘扭距(Screw Torque) |
20 Ibf. in |
|
額定電流(Rated Current) |
600V,40A |
|
耐電壓值(Withstand i ng Voltage) |
AC3000V |
|
絕縁材料(Insulation Body) |
PBT.UL94.V-0 |
|
螺釘材質(Screw Material) |
M5,STEEL |
|
端子材質(Terminal Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C-105°C |
