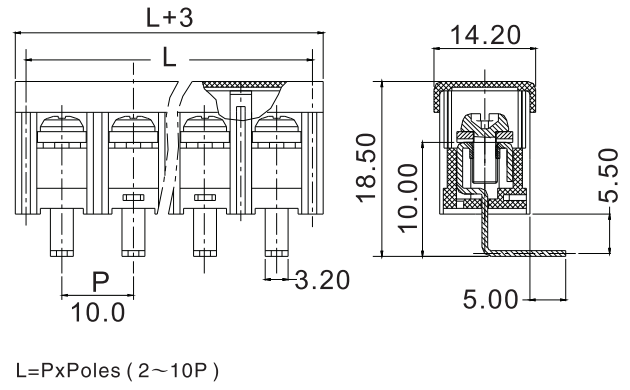

端子間距(Center Spase) |
10. 0mm |
|
壓線範圍(Wire Range) |
18-10AWG |
|
螺釘扭距(Screw Torque) |
13 Ibf. in |
|
額定電流(Rated Current) |
600V,25A |
|
耐電壓值(Withstanding Voltage) |
AC3000V |
|
絕緣材料(Insulation Body) |
PA66,UL94,V-0 |
|
螺釘材質(Screw Material) |
M4,STEEL |
|
端子材質(Termina 1 Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
